LF3X-ON, 12V

LF3X-ON

$19.00
Ground
Quantity

Product Details

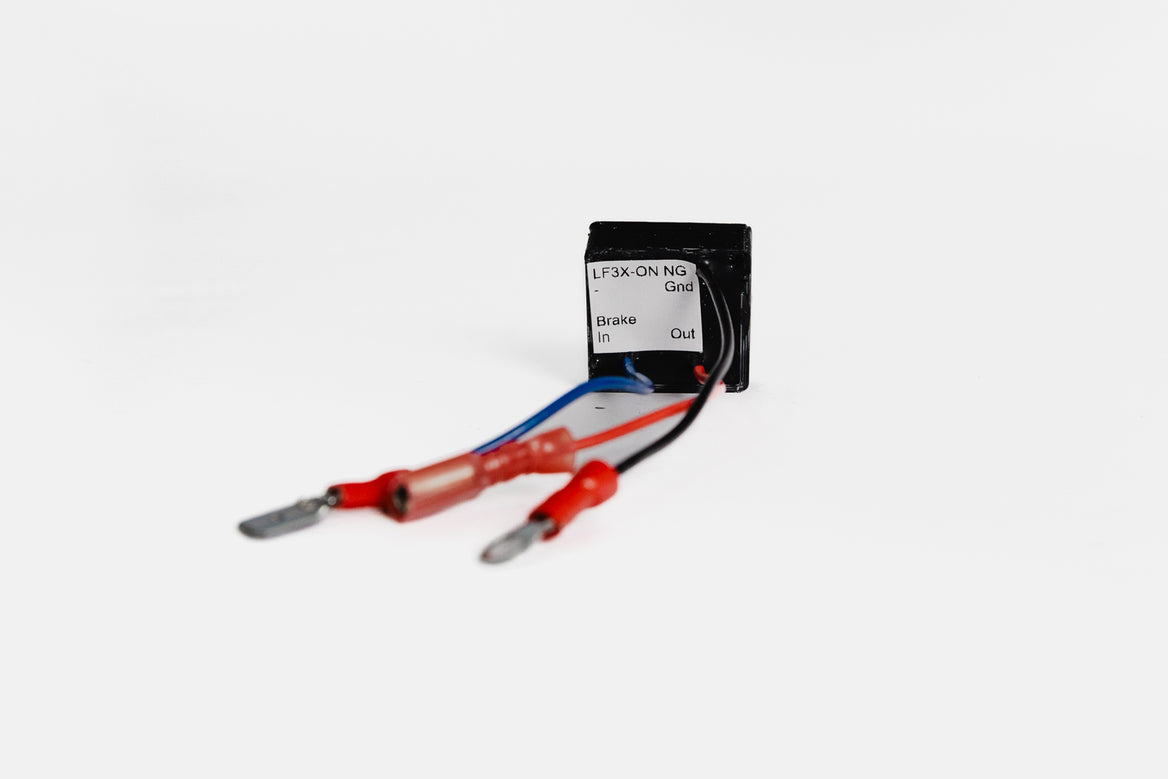

The LF3X-ON is a small add on module that will flash LED loads (1 amp max) three times then remain on as long as power is applied. Remove power, then reapply power and the cycle will repeat (3X flash then remain on). Typically used to flash a 3rd brake light.

Used with Litezupp LAUX series 3rd brake lights or other LED Lights.

Available in Negative or Positive ground versions.

The LF3X-ON is a small add on module that will flash LED loads (1 amp max) three times then remain on as long as power is applied.
Remove power, then reapply power and the cycle will repeat (3X flash then remain on).
Used with Litezupp LAUX series 3rd brake lights or other LED Lights.

Application - Used to flash a 3rd brake light.

Features

  • Available in Negative or Positive ground versions.
  • Three terminal easy connection
    • Blue (neg gnd system): 12V input from brake signal /  Green (Pos gnd system): - 12V input from brake signal
    • Black: Chassis Ground
    • Red: 12V flashing output to LED
  • Solid state design
  • 12V, 1 amp for negative ground systems
  • Can be used with the Litezupp LAUX series of 3rd brake lights or other brake lights.
  • Potted housing
  • Instructions
